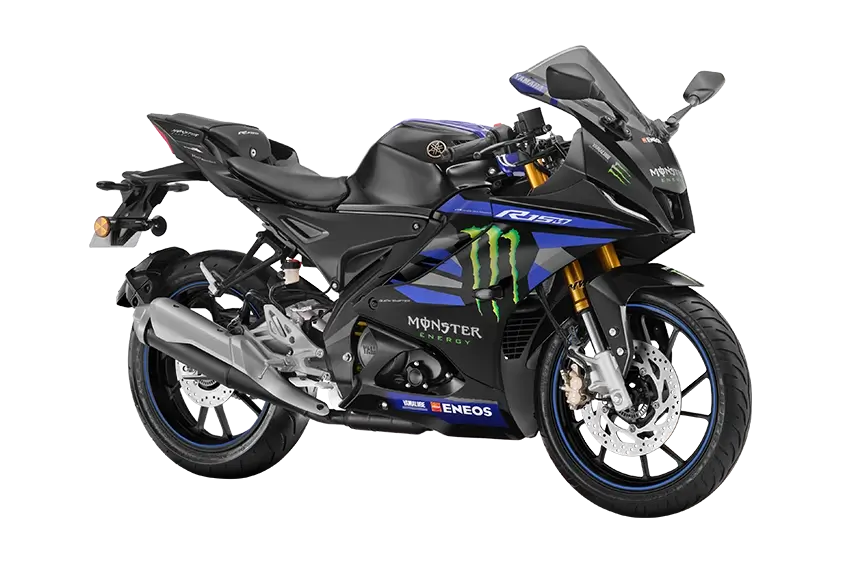

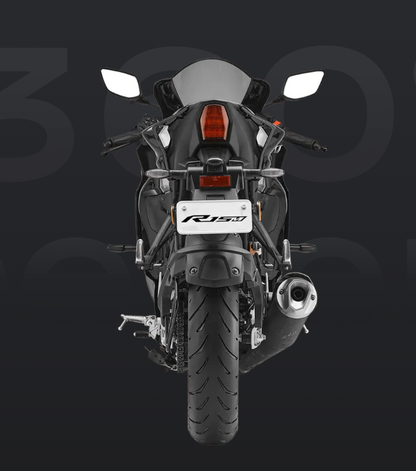

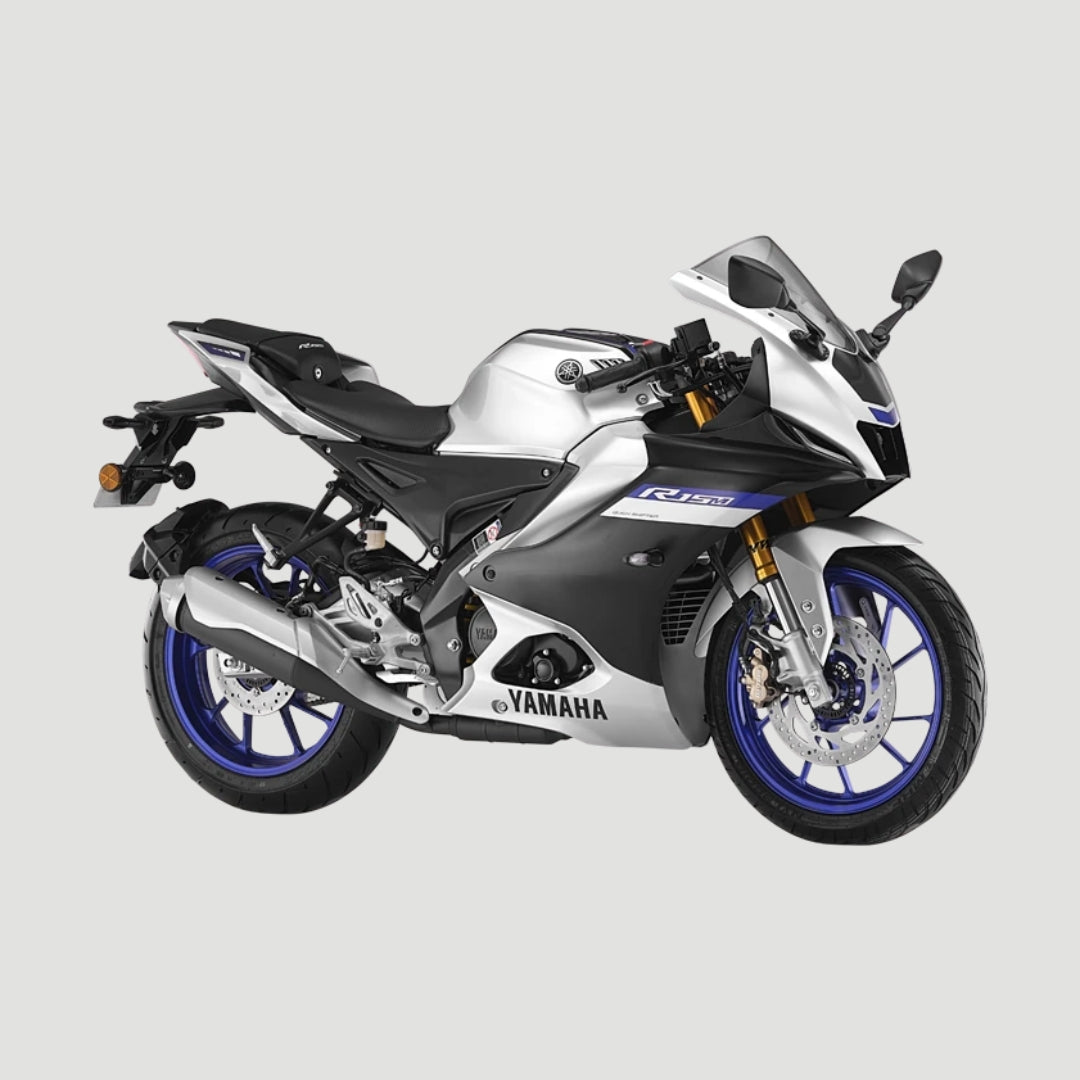

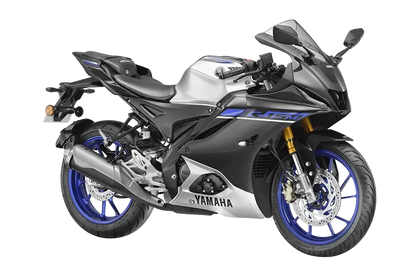

R15 M

Specifications

Engine

• Engine Type: Liquid-cooled, 4-stroke, SOHC, 4-valve
• Displacement: 155cc
• Bore & Stroke: 58.0 mm × 58.7 mm
• Compression Ratio: 11.6:1
• Maximum Horse Power: 13.5 kW (18.4 PS) @ 10,000 RPM
• E20 Compatible: Yes
• Clutch Type: Wet, Multiple Disc
• Transmission Type: Constant mesh, 6-speed
• Starting System: Electric starter
• Maximum Torque: 14.2 Nm (1.4 kgfm) @ 7,500 RPM
• Fuel System: Fuel injection

Dimensions

• Overall Length: 1,990 mm
• Overall Width: 725 mm
• Overall Height: 1,135 mm
• Minimum Ground Clearance: 170 mm
• Kerb Weight: 141 kg (with oil & a full fuel tank)
• Seat Height: 815 mm
• Wheelbase: 1,325 mm
• Fuel Tank Capacity: 11 L

Chassis

• Frame Type: Deltabox
• Front Suspension: Telescopic Upside Down Fork (USD Fork)
• Rear Suspension: Linked-Type Monocross Suspension
• Front Brake: Disc brake, 282 mm
• Rear Brake: Disc brake, 220 mm
• Front Tyre: 100/80-17M/C 52P - Tubeless
• Rear Tyre: 140/70R17M/C 66H - Radial Tubeless
• Inner Tube (Front Fork Diameter): 37.0 mm
• ABS: Dual Channel

Other Information

• Color TFT Meter: Equipped
• Turn-by-Turn Navigation & Music Control: Equipped
• Y-Connect (Smartphone Bluetooth Connectivity): Equipped
• Battery: 12 V, 4.0 Ah
• Headlight: Bi-functional LED (Class D)
• Position Light: LED
• Brake/Tail Light: LED
• Speedometer: Digital
• Tachometer: Digital
• Fuel Meter: Digital
• Side Stand Engine Cut-off Switch: Equipped
• Dual Horn: Equipped
• Fuel Consumption Indicator: Equipped
• Gear Position Indicator: Equipped
• Shift Timing Light: Equipped
• Clock: Digital, auto-adjust with smartphone connectivity
• VVA (Variable Valve Actuation): Equipped
• Riding Modes: Track Mode / Street Mode
• Quick Shifter (Up-shift): Equipped
• Traction Control System: Equipped
