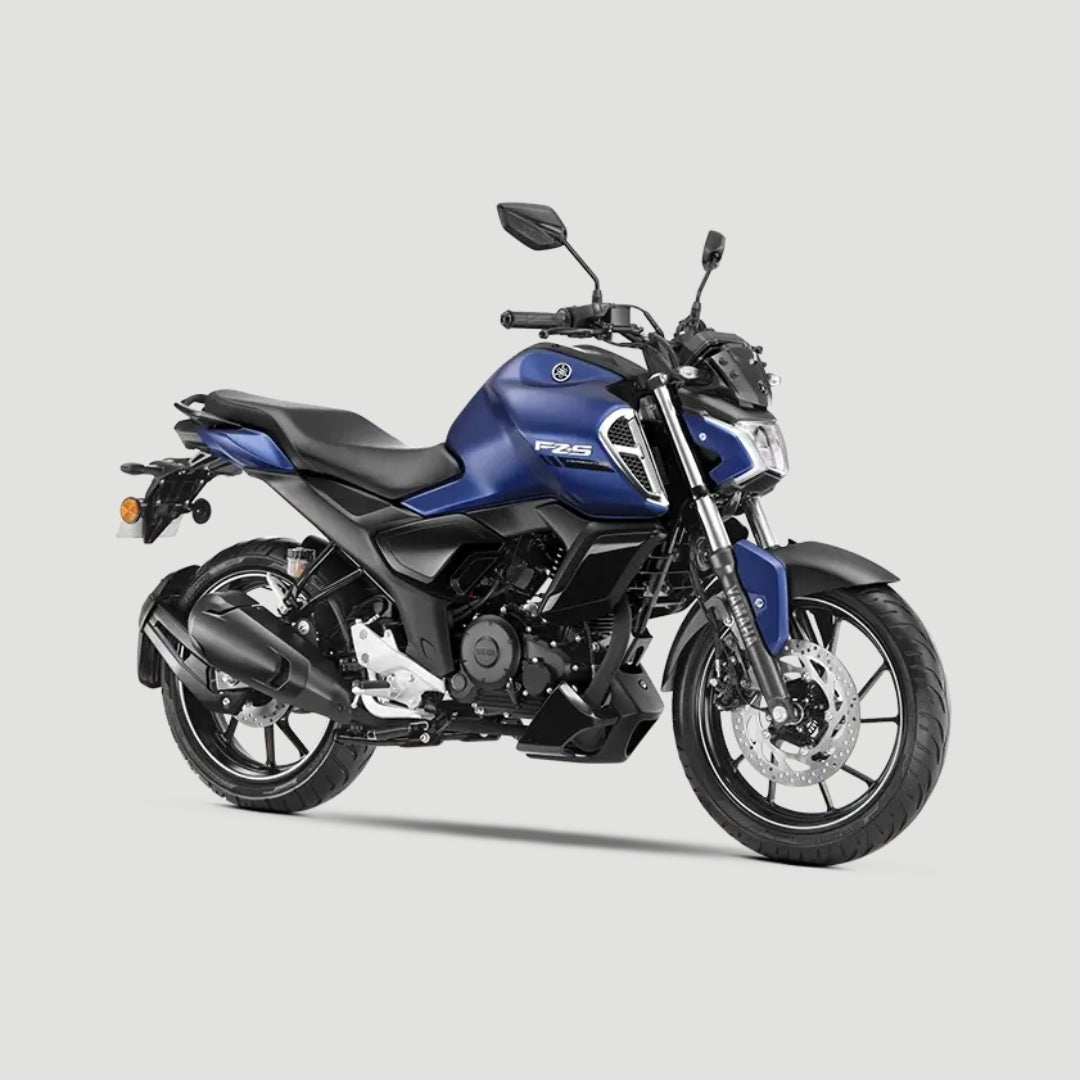

FZ-S Fi Ver 4.0

Specifications

Engine

• Engine Type: Air-cooled, 4-stroke, SOHC, 2-valve
• Displacement: 149 cc
• Bore & Stroke: 57.3 mm × 57.9 mm
• Compression Ratio: 9.6:1
• Maximum Horsepower: 9.1 kW (12.4 PS) @ 7,250 r/min
• E20 Compatible: Yes
• Starting System: Electric starter
• Maximum Torque: 13.3 N.m (1.4 kgf.m) @ 5,500 r/min

Dimensions

• Overall Length: 2,000 mm
• Overall Width: 780 mm
• Overall Height: 1,080 mm
• Ground Clearance: 165 mm
• Kerb Weight: 136 kg
• Seat Height: 790 mm
• Wheelbase: 1,330 mm

Chassis & Brakes

• Front Tyre Size: 100/80-17M/C 52P Tubeless
• Rear Tyre Size: 140/60R17M/C 63P Radial Tubeless
• Front Brake: Disc Brake (282 mm)
• Rear Brake: Disc Brake (220 mm)
• ABS: Single Channel ABS

Other Features

• Fuel Tank Capacity: 13 L
• Traction Control System: Equipped
• Y-Connect: Enabled
• Fuel Supply: Fuel injection
• Transmission Type: Constant mesh, 5-speed
• Headlight: LED
• Front Suspension: Telescopic Fork
• Rear Suspension: 7-Step Adjustable Monocross Suspension
• Clock: Digital
• Taillight: LED
• Battery: 12V
• Speedometer: Digital
• ECO Indicator: Equipped
• Side Stand Engine Cut-Off Switch: Equipped
