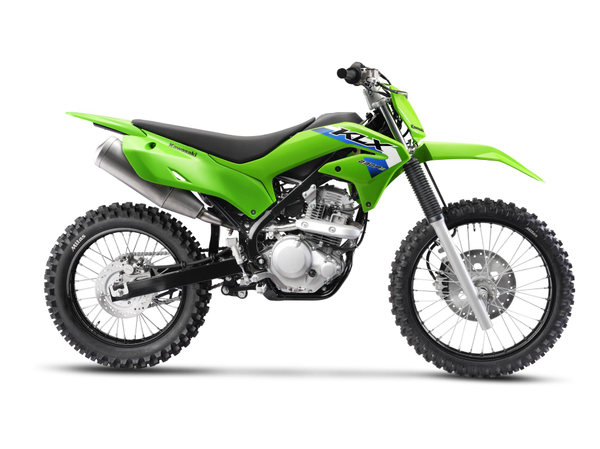

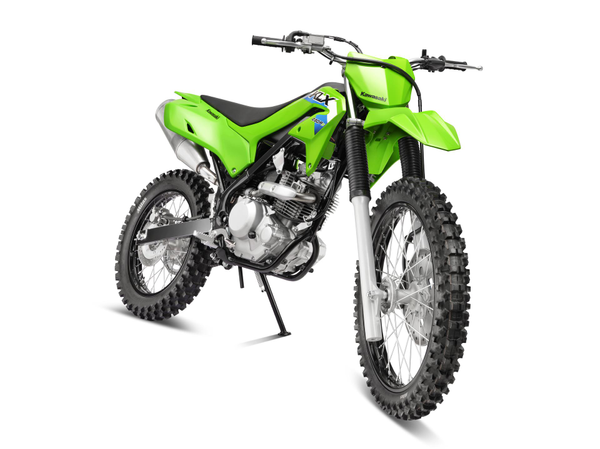

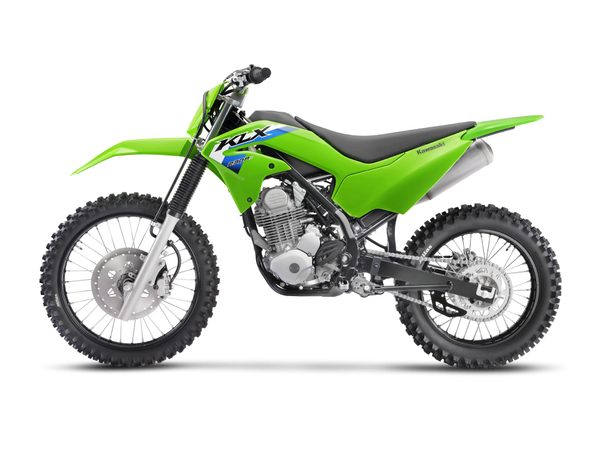

The full-size fun of the KLX230R trail bike means it’s time to Get Out And Play. Take on terrain with nimble handling and plenty of power, while kicking up some serious dirt along the way. Long-travel suspension paired with improved low-speed control give this bike a sporty feel that stands out among the rest. Finished with styling inspired by the KX lineup, the highly capable, lightweight package of the KLX230R brings a heavy dose of fun to every off-road ride.

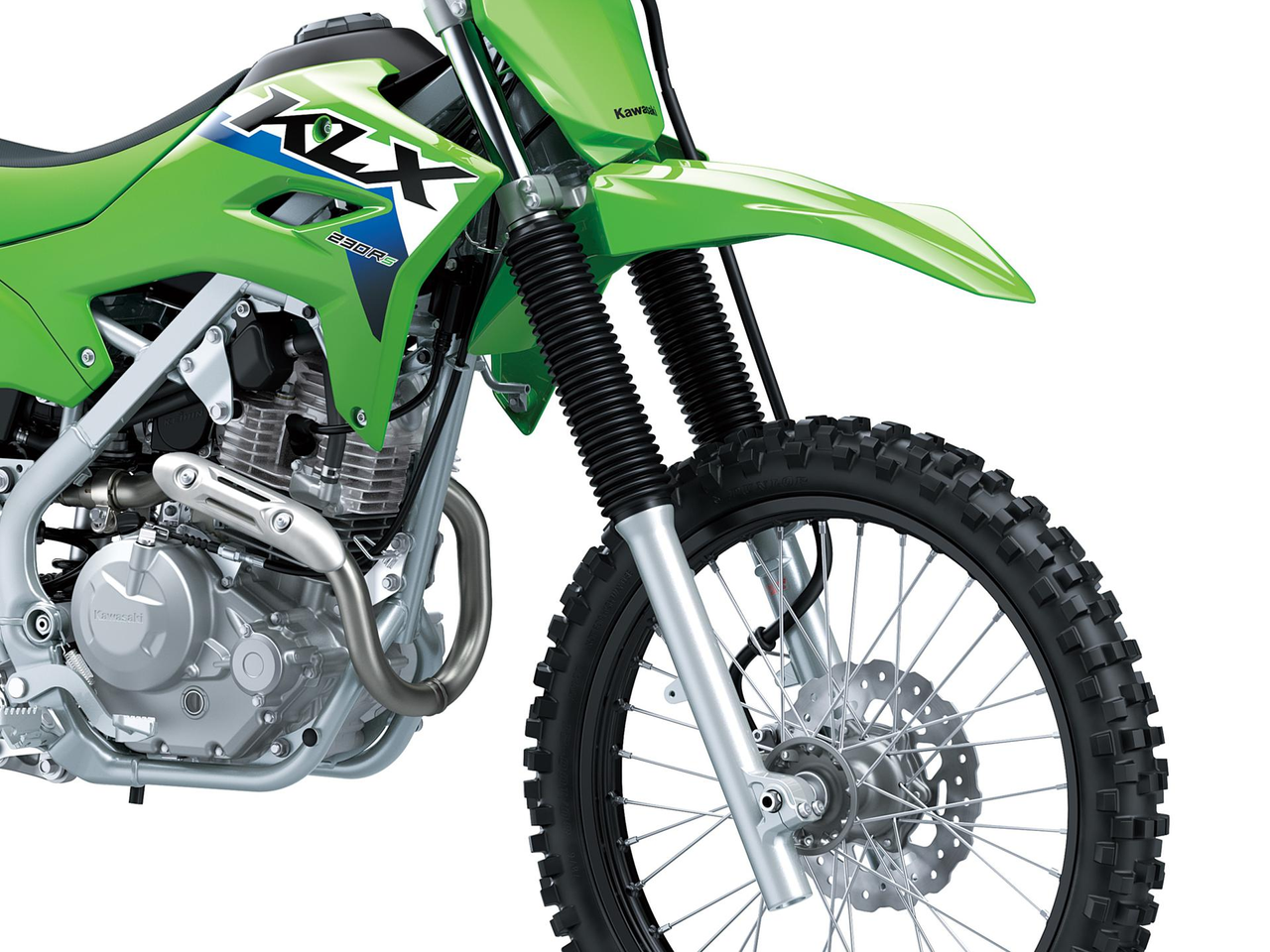

Long-Travel Suspension with Large-Diameter 21”/18” Wheels
Ample wheel travel is available at the at the front and rear thanks to an ideally-suited suspension, while large diameter aluminium wheels, measuring 21” at the front and 18” at the rear efficiently navigate trails, the combination of which greatly contributes to trail-riding performance.

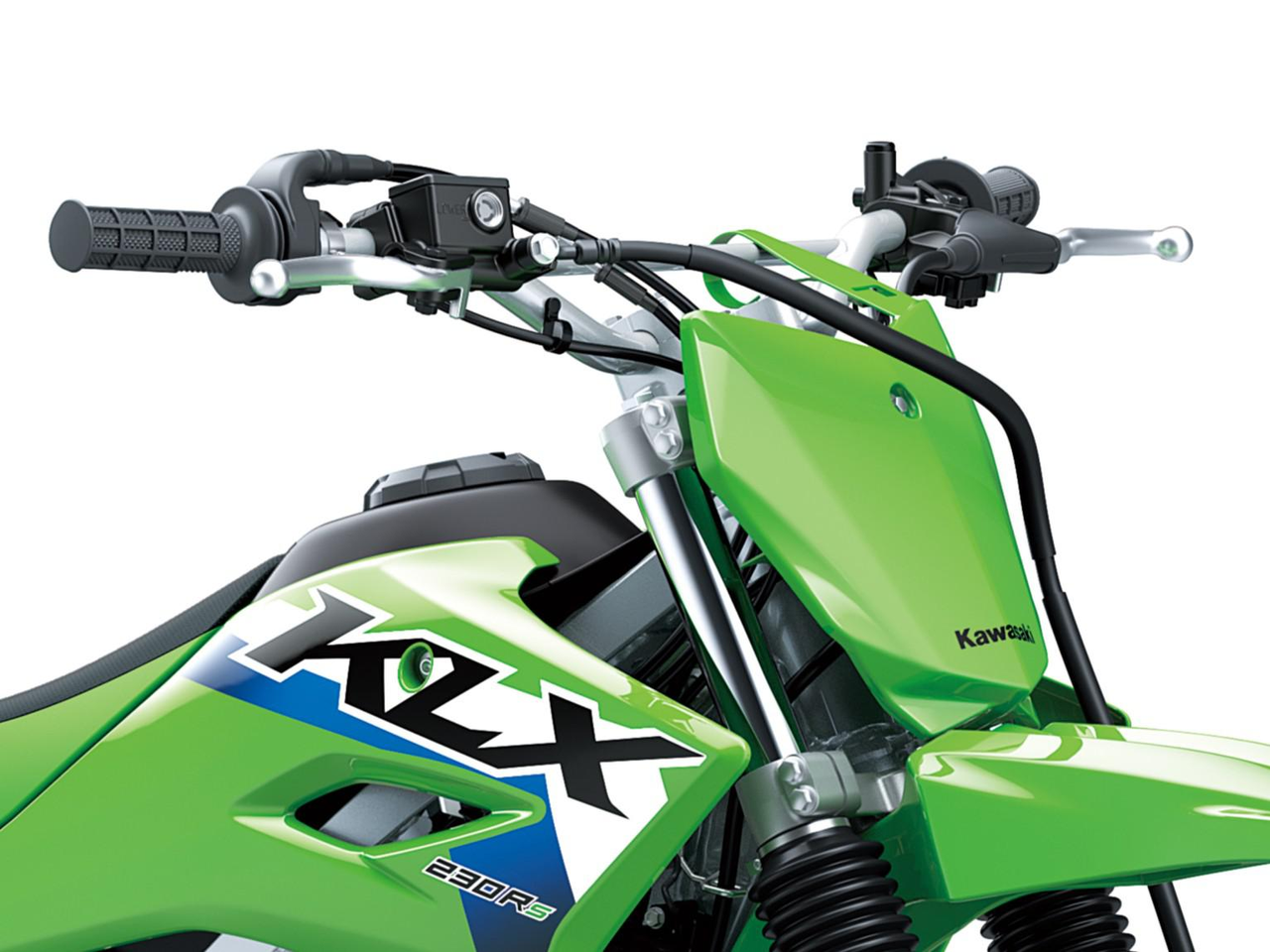

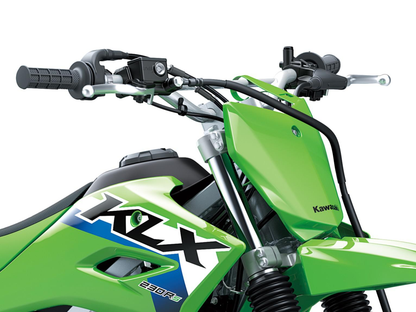

Controllable Riding Position
The handlebars are 25 mm further forward than the previous model’s to match the lower seat height, offering the rider excellent control, which translates to improved handling when cornering. The footpegs are 9 mm further to the rear to achieve a riding position with added control.

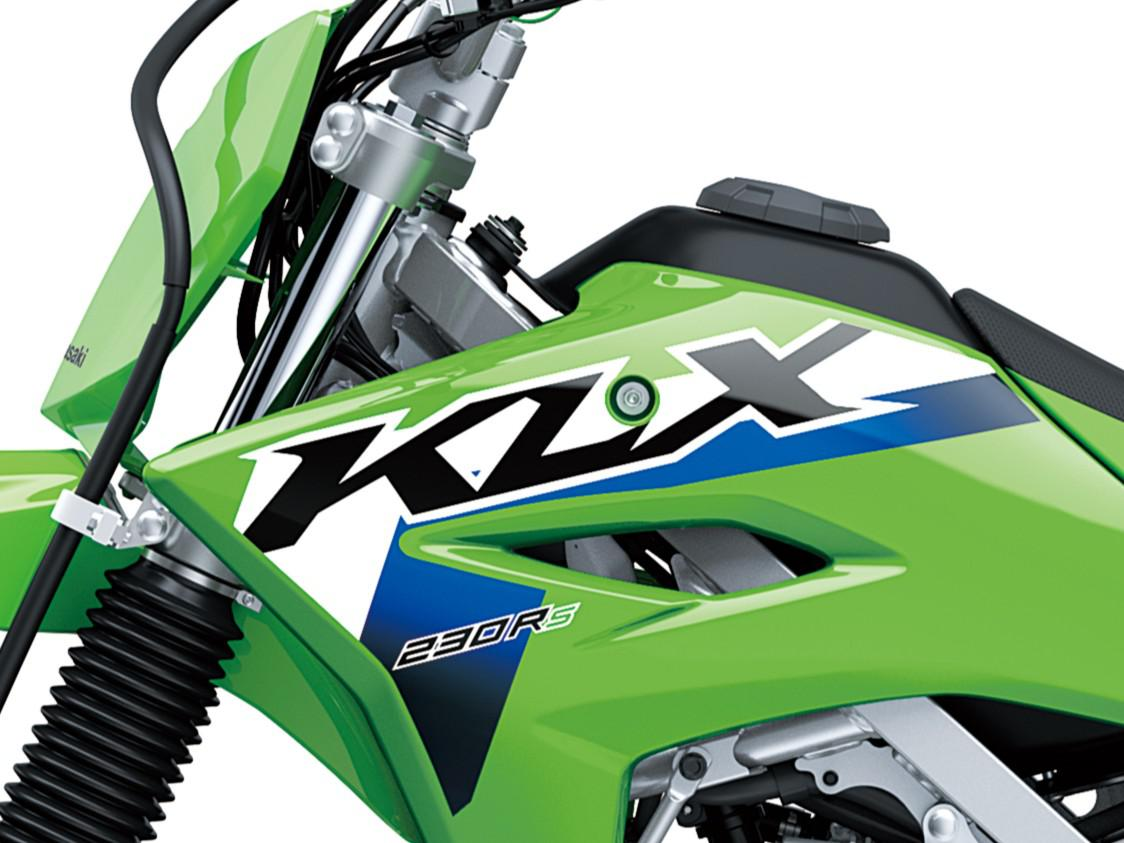

Larger Capacity Fuel Tank
A 7.6 litre fuel tank (compared to the previous model’s 6.6 litres) adds more range and allows longer intervals between refueling for more fun riding time. The fuel tank also features a key-operated tank cap.
Latest KX Styling with Smooth-Design Bodywork
The latest KX series’ “Aggressive & Agile” design concept is retained, with a flat design that flows from the front to rear fender, creating a sense of unity and a sharp overall look. The smooth bodywork was designed to have as few protruding parts as possible to facilitate moving around, contributing to excellent ergonomics.

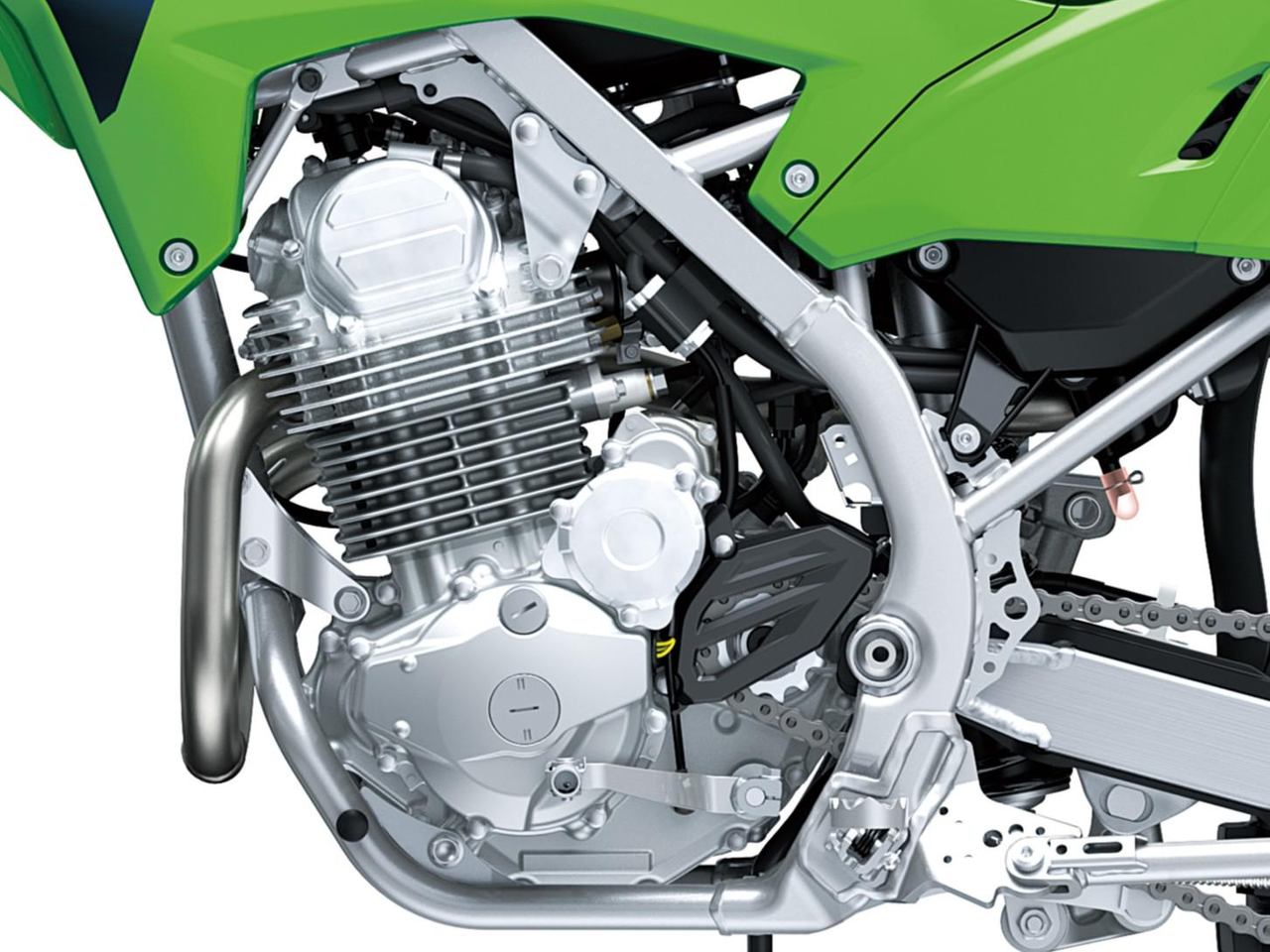

233 cm3 Fuel-Injected Engine with Improved Low-Mid Range & Balancer
The KLX230R’s updated engine offers more low- to midrange torque for low-speed control, resulting in a rider-friendly engine character and linear acceleration. This combined with the low-speed feeling makes this play bike even more fun than before

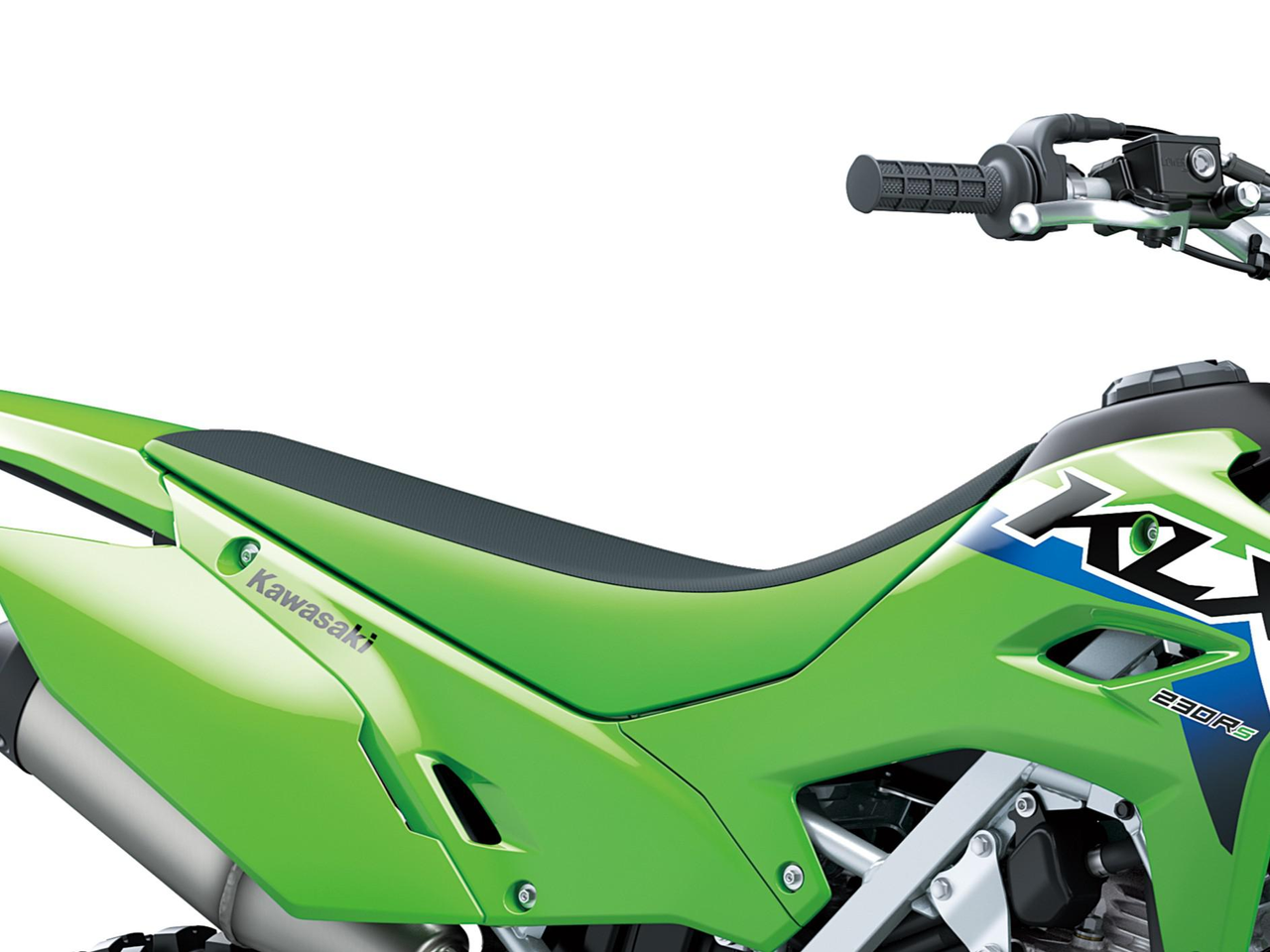

Revised Seat
The KLX230R’s newly designed seat has 6 mm thicker urethane for a more comfortable ride, while retaining a flat silhouette that offers the rider freedom of movement, resulting in a very comfortable yet highly functional seat for off-road riding.
| Air-cooled, 4-stroke, single-cylinder |
| 9.4:1 |
| SOHC, 2 valves |
| 67.0 x 66.0 mm |
| 233 cm³ |
| Fuel injection: 32 mm x 1 |
| Forced lubrication, wet sump |
| Electric |
| Digital |
Performance & Transmission
| 6-speed, return shift |
| Wet, multi disc |
| 2.871 (89/31) |
| 3.000 (39/13) |
| 2.067 (31/15) |
| 1.556 (28/18) |
| 1.261 (29/23) |
| 1.040 (26/25) |
| 0.852 (23/27) |
| Chain |
| 3.461 (45/13) |
| Perimeter, high-tensile steel |
| 103 mm |
| 220 mm |
| 223 mm |
| 2.75-21 45P |
| 4.10-18 59P |
| 2,050 x 830 x 1,180 mm |
| 45° / 45° |
| 1,370 mm |
| 270 mm |
| 7.5 litres |
| 900 mm |
| 129 kg |
| 123 kg |
| Single disc |
| Ø 290 mm |
| Single disc |
| Ø 230 mm |
| Telescopic fork |
| Ø 37 mm |
| Uni-Trak with spring preload adjustability |
