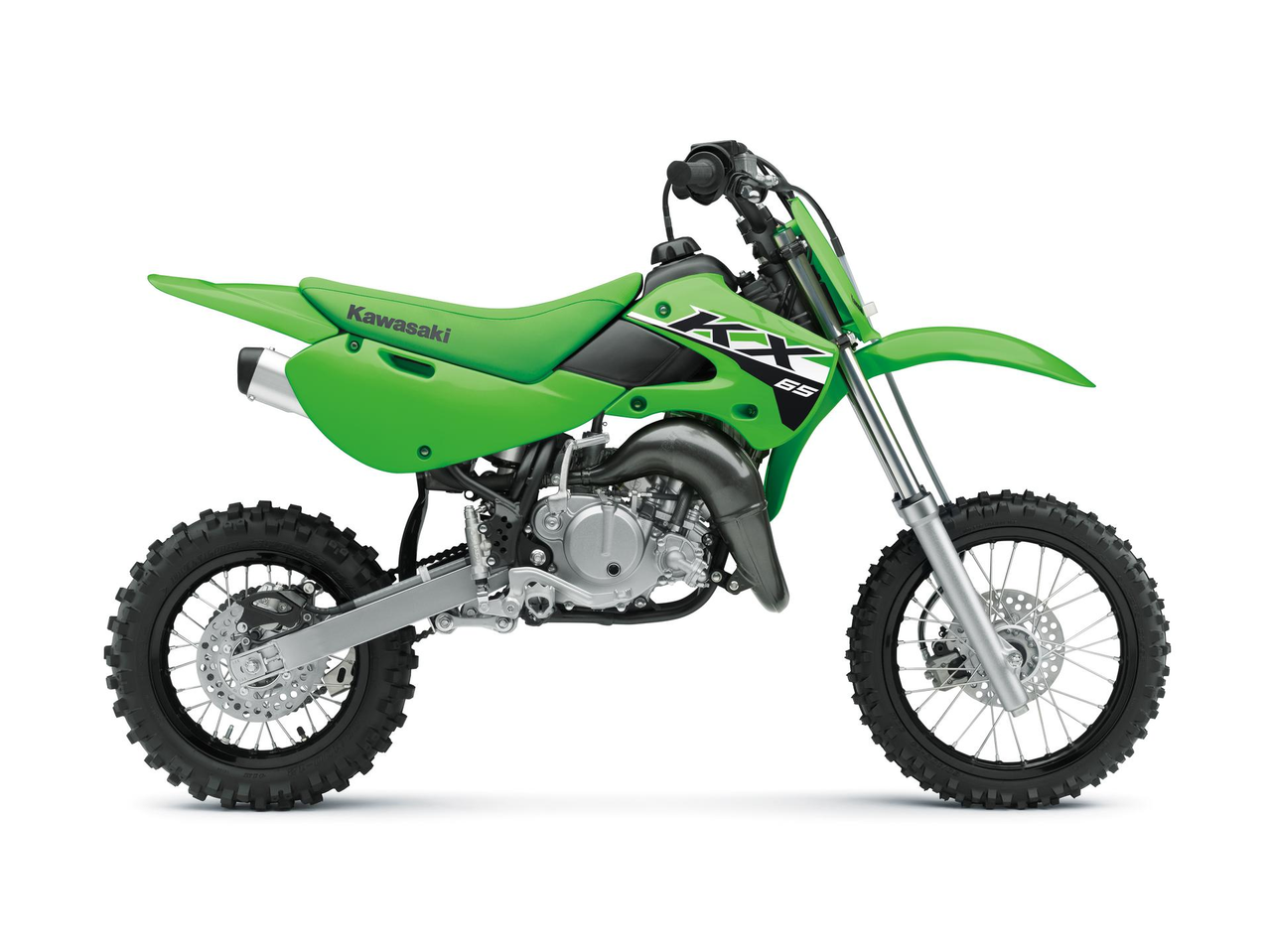

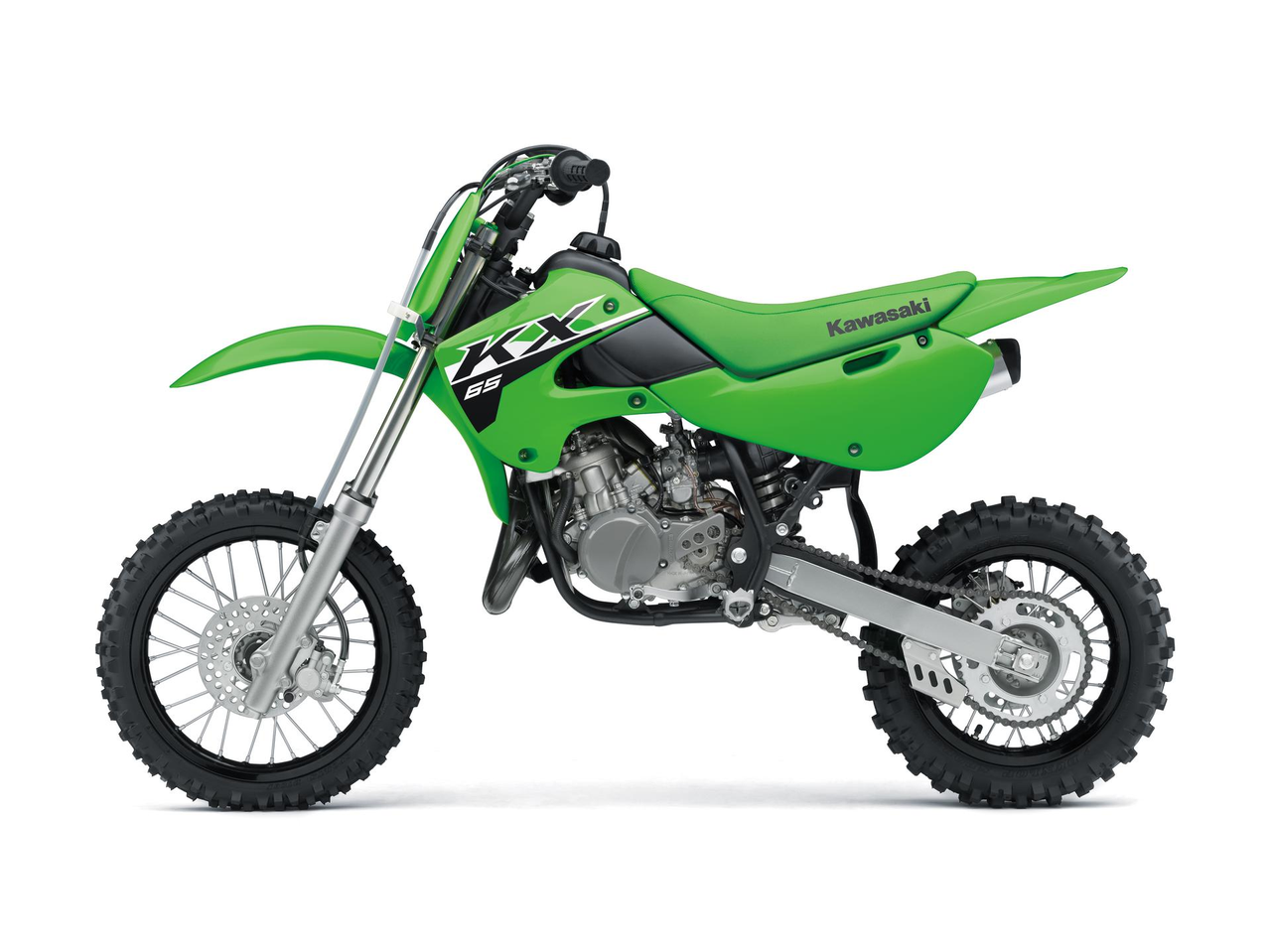

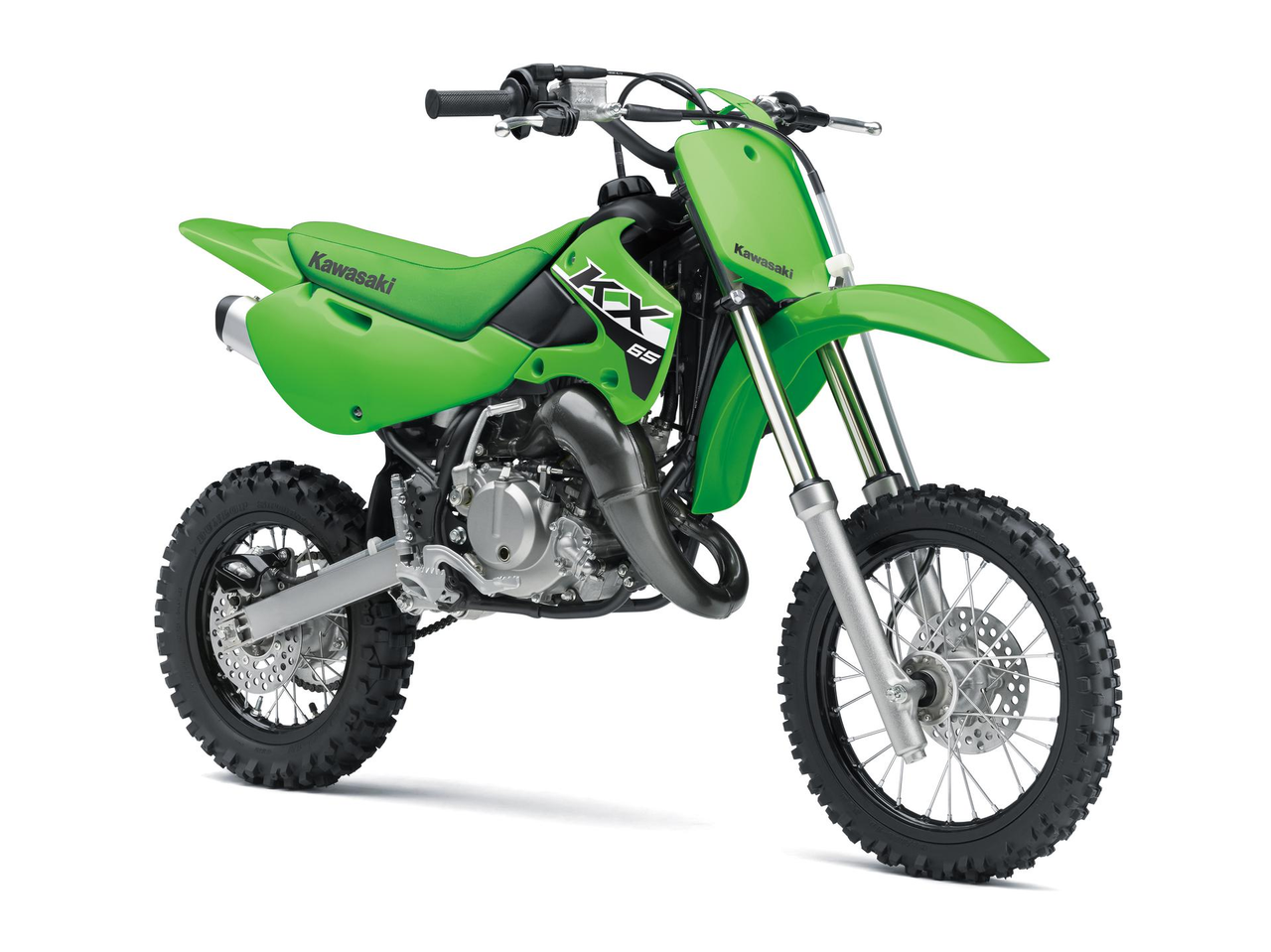

KX65

Specification:

Engine

• Type: Liquid-cooled, 2-stroke, single-cylinder
• Displacement: 64 cm³
• Bore x Stroke: 44.5 x 41.6 mm
• Compression Ratio: 8.4:1
• Valve System: Piston reed valve
• Fuel System: Carburettor
• Lubrication: Petrol mix
• Starting System: Primary kick
• Ignition System: Electric CDI

Performance & Transmission

• Transmission: 6-speed, return shift
• Clutch: Wet, multi-disc
• Primary Reduction Ratio: 3.500 (77/22)
• Gear Ratios:
  • 1st: 2.846 (37/13)
  • 2nd: 2.125 (34/16)
  • 3rd: 1.722 (31/18)
  • 4th: 1.428 (30/21)
  • 5th: 1.217 (28/23)
  • 6th: 1.083 (26/24)
• Final Drive: Chain
• Final Reduction Ratio: 3.615 (47/13)

Frame & Dimensions

• Frame Type: Tubular, semi-double cradle
• Trail: 60 mm
• Wheel Travel:
  • Front: 210 mm
  • Rear: 240 mm
• Tyres:
  • Front: 60/100-14 30M
  • Rear: 80/100-12 41M
• Dimensions (L x W x H): 1,590 x 760 x 955 mm
• Steering Angle (L/R): 40° / 40°
• Wheelbase: 1,120 mm
• Ground Clearance: 305 mm
• Fuel Capacity: 3.8 litres
• Seat Height: 760 mm
• Curb Mass: 60 kg

Brakes & Suspension

• Front Brake:
  • Type: Single disc
  • Diameter: Ø 180 mm
  • Caliper: Single-piston
• Rear Brake:
  • Type: Single disc
  • Diameter: Ø 180 mm
  • Caliper: Single-piston
• Front Suspension:
  • Type: Telescopic fork with 4-way rebound damping
  • Diameter: Ø 33 mm
• Rear Suspension: Uni-Trak swingarm

These specifications highlight the KX65's capabilities as a dependable entry-level motocross bike, perfect for young enthusiasts aiming to hone their riding skills.
