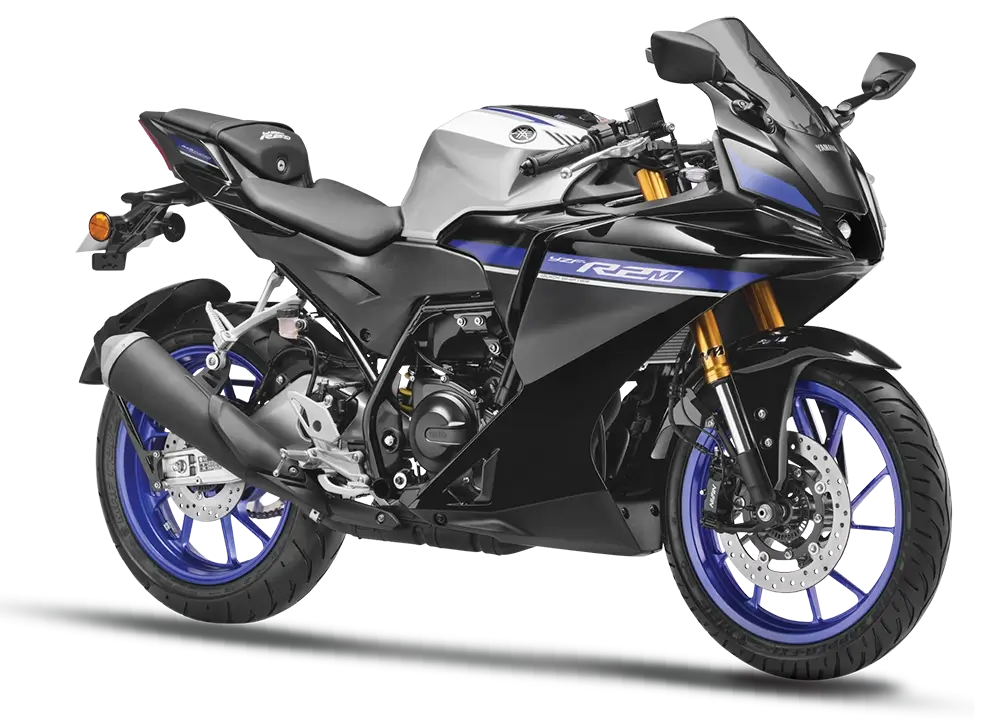

R2M

Specifications

• ENGINE
  Engine Type:Liquid cooled, 4-stroke, DOHC, 4-Valve

  Displacement:204 cm3

  Bore & Stroke:66.0 × 59.6 mm

  Compression Ratio:11.5:1

  Maximum Horsepower:26.5PS (19.5kW)/10000r/min

  Maximum Torque:19.1N・m(1.9kgf・m)/8000r/min

  Fuel System:Fuel injection

  Clutch Type:Wet, multiple-disc

  Starting System:Electric starter

  Transmission:Constant mesh, 6-speed

  E20 Compatible:Yes

  CHASSIS

  Frame Type:Backbone (Steel Tube Diamond Frame)

  Front Suspension:Telescopic Upside Down Fork (USD Fork)

  Front Fork Inner Tube Diameter:37.0 mm

  Rear Suspension:Linked-Type Monocross Suspension

  Front Disc Brake:282 mm

  Rear Disc Brake:220 mm

  Tyre size(Front):100/80-17M/C 52S Tubeless

  Tyre size(Rear):140/70R17M/C 66H Tubeless

  ABS:Dual Channel

  DIMENSIONS

  Overall Length:1980 mm

  Overall Width:700 mm

  Overall Height:1140 mm

  Seat Height:810 mm

  Wheelbase:1340 mm

  Minimum Ground Clearance:170mm (At Unladen {Kerb} Vehicle Weight)
  145mm (At Laden* Vehicle Weight)

  Kerb Weight:149kg/150kg^#

  Fuel Tank Capacity:12 L

  *(Kerb Weight + Weight of Rider + Weight of Pillion)
  #For R2M and R2 QS

  OTHER INFORMATION

  Instrumentation & Display:TFT

  Connectivity & Convenience:Y-Connect

  Riding Modes:3 Riding Modes
